2904. Rook attack



You have been given a rows-by-cols chessboard, with a list of squares cut out. The list of cutouts will be given. This problem will involve placing rooks on a chessboard, so that they cannot attack each other. For a rook to attack a target piece, it must share the same row or column as the target. Rooks cannot be placed on cut out squares. The cut-out squares do not affect where the rooks can attack.



Input. Consists of multiple test cases. The first line of each test case contains three integers: the dimensions of the chessboard rows and cols (1 ≤ rows, cols ≤ 300) and the number of cut out squares cuts. Next line gives the list of (x, y) coordinates of cut out squares, delimited with a space. The list has a form x1 y1 x2 y2 x3 y3 ... xcuts ycuts. It is known that 0 ≤ xi ≤ rows – 1, 0 ≤ yi ≤ cols – 1.



Output. For each test case print in a separate line the maximum number of rooks that can be placed on the chessboard, such that no pair of rooks can attack each other.



Sample input

Sample output

8 8 0



3 3 6

0 0 1 0 1 1 2 0 2 1 2 2

3 3 3

0 0 1 2 2 2

8

2

3





SOLUTION

graphs - flows



Algorithm analysis

Let's construct a bipartite graph. In the first part we'll place rows of vertices, in the second – cols of vertices. If the cell with coordinates (i, j) remains uncut on the chessboard, then draw an edge between the i-th vertex of the first part and the j-th vertex of the second part. The maximum matching of the resulting bipartite graph is equal to the maximum number of non-attacking rooks that can be placed on the chessboard. We solve the problem using the maximum flow, adding two vertices: source and drain.

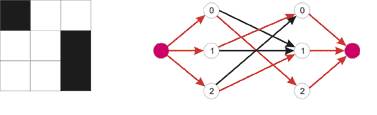

For example, for the third test case, the chessboard and the constructed graph will look like:

Saturated edges in the maximum flow are highlighted in red. The flow value is 3, the rooks are located in cells (0, 2), (1, 0) and (2, 1).

When constructing the capacity matrix m, the vertices of the graph have the following numbers:

·        source: number 0;

·        first part: from 1 to rows;

·        second part: from rows + 1 to rows + cols;

·        drain: number rows + cols + 1;



Example

In the third test case, cells (0, 0), (1, 2), (2, 2) are cut out. You can place 3 rooks on the board that do not attack each other.



Algorithm realization

Declare the global arrays and variables.



#define MAX 602

int m[MAX][MAX], used[MAX], MaxFlow, flow;



The function aug finds an augmental path from x to t using depth-first search and returns the value of the maximum flow in it.



int aug(int x,int t,int CurFlow)

{

  if (x == t) return CurFlow;

  if (used[x]++) return 0;



  for (int Flow,y = 0; y < n; y++)

  {

    if (m[x][y] > 0 && (Flow = aug(y,t,min(CurFlow,m[x][y]))))

    {

      m[x][y] -= Flow; m[y][x] += Flow;

      return Flow;

    }

  }

  return 0;

}



The function BuildMatrix constructs a bipartite graph in the adjacency matrix m as described in the analysis of the algorithm.



void BuildMatrix(void)

{

  int i, j, a, b;



Reset the adjacency matrix m. The variable n stores the number of vertices of the graph.



  memset(m,0,sizeof(m));

  n = rows + cols + 2;

  for(i = 1; i <= rows; i++) m[0][i] = 1;

  for(i = 1; i <= cols; i++) m[i+rows][n-1] = 1;



Fill the graph, assuming that there are no holes on the board. Draw an edge between each vertex of the first and the second part.



  for(i = 1; i <= rows; i++)

  for(j = 1; j <= cols; j++) m[i][j+rows] = 1;



For each hole with coordinates (a, b) we remove the edge between vertex a of the first part and vertex b of the second part.



  for(i = 0; i < cuts; i++)

  {

    scanf("%d %d",&a,&b);

    m[a+1][rows+b+1] = 0;

  }

}



The main part of the program. Read the input data. Construct a matrix and run the algorithm for finding the maximum flow.



while(scanf("%d %d %d",&rows,&cols,&cuts) == 3)

{

  BuildMatrix();

  MaxFlow = 0;

  do

  {

    memset(used,0,sizeof(used));

  } while ((flow = aug(0,n-1,0x7FFFFFFF)) && (MaxFlow += flow));



  printf("%d\n",MaxFlow);

}



Algorithm realization – augmenting path with optimization



#include <cstdio>

#include <vector>

#include <algorithm>

#define MAX 301

using namespace std;



int g[MAX][MAX];

vector<int> used, par, mt;

int i, j, ptr;

int rows, cols, cuts, a, b, flow;



int dfs(int v)

{

  if (used[v]) return 0;

  used[v] = 1;

  for (int to = 0; to < cols; to++)

  {

    if (g[v][to] == 0) continue;

    if (mt[to] == -1 || dfs(mt[to]))

    {

      mt[to] = v;

      par[v] = 1;

      return 1;

    }

  }

  return 0;

}



void AugmentingPath(void)

{

  int i, run;

  mt.assign (cols, -1);

  par.assign (rows, -1);



  for (run = 1; run; )

  {

    run = 0; used.assign(rows, 0);

    for (i = 0; i < rows; i++)

      if ((par[i] == -1) && dfs(i)) run = 1;

  }

}



int main(void)

{

  while(scanf("%d %d %d",&rows,&cols,&cuts) == 3)

  {

    for(i = 0; i < rows; i++)

    for(j = 0; j < cols; j++) g[i][j] = 1;



    for(i = 0; i < cuts; i++)

    {

      scanf("%d %d",&a,&b);

      g[a][b] = 0;

    }



    AugmentingPath();



    for (flow = i = 0; i < cols; i++)

      if (mt[i] != -1) flow++;



    printf("%d\n",flow);

  }

  return 0;

}
